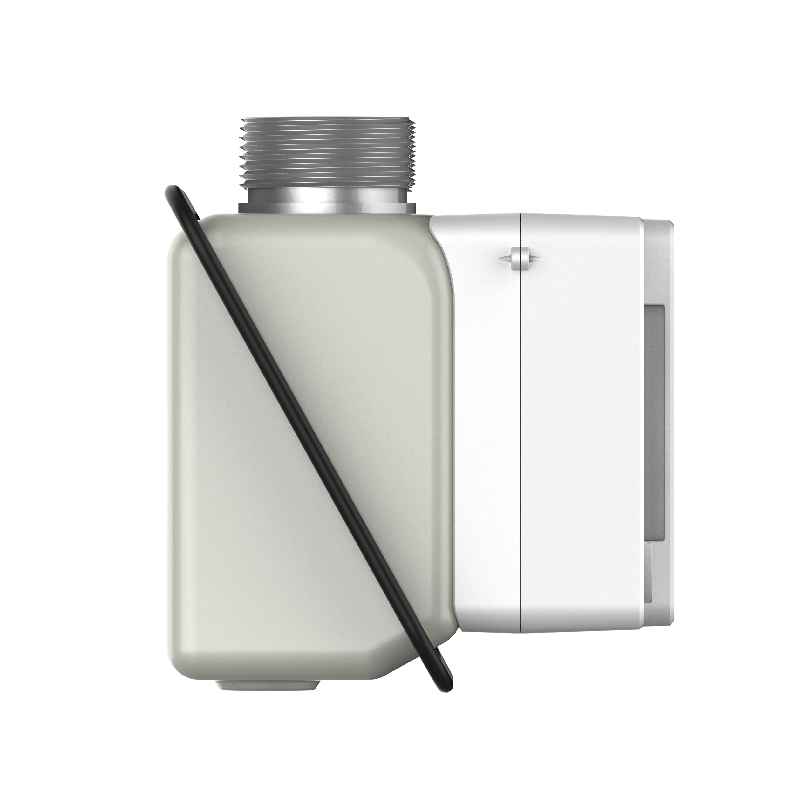

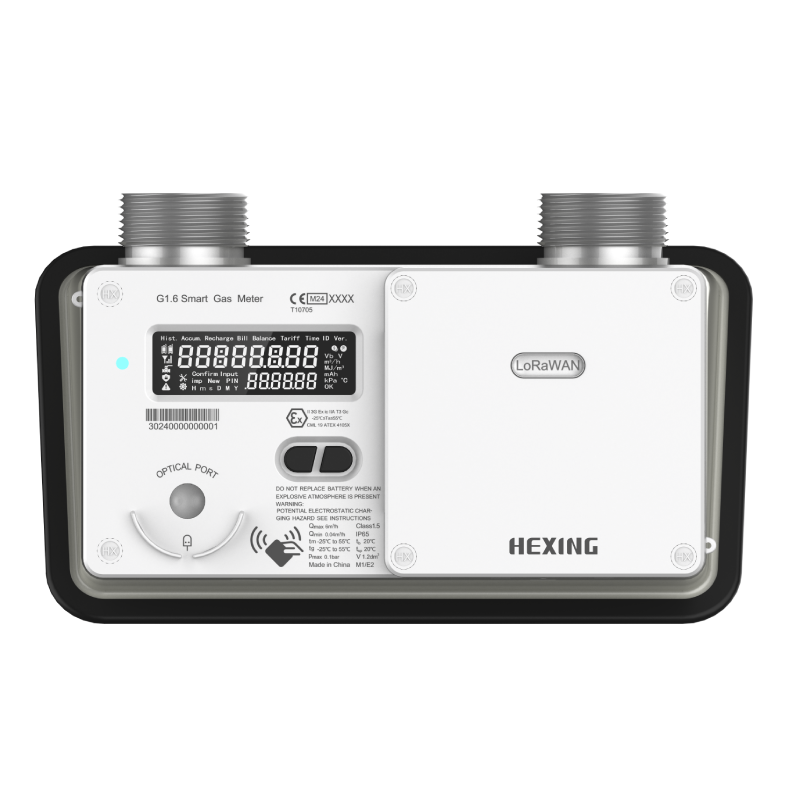

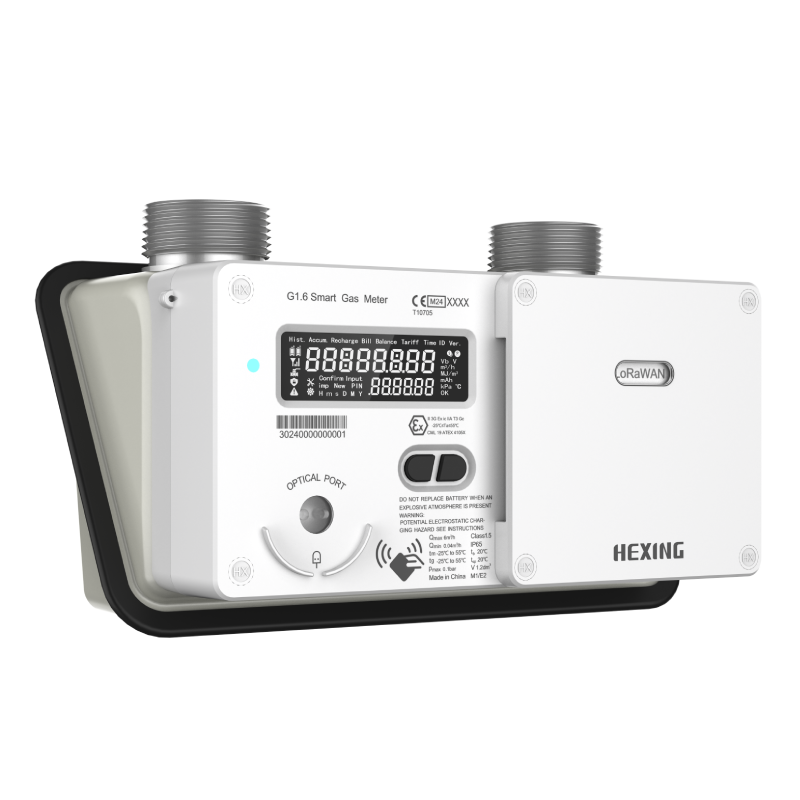

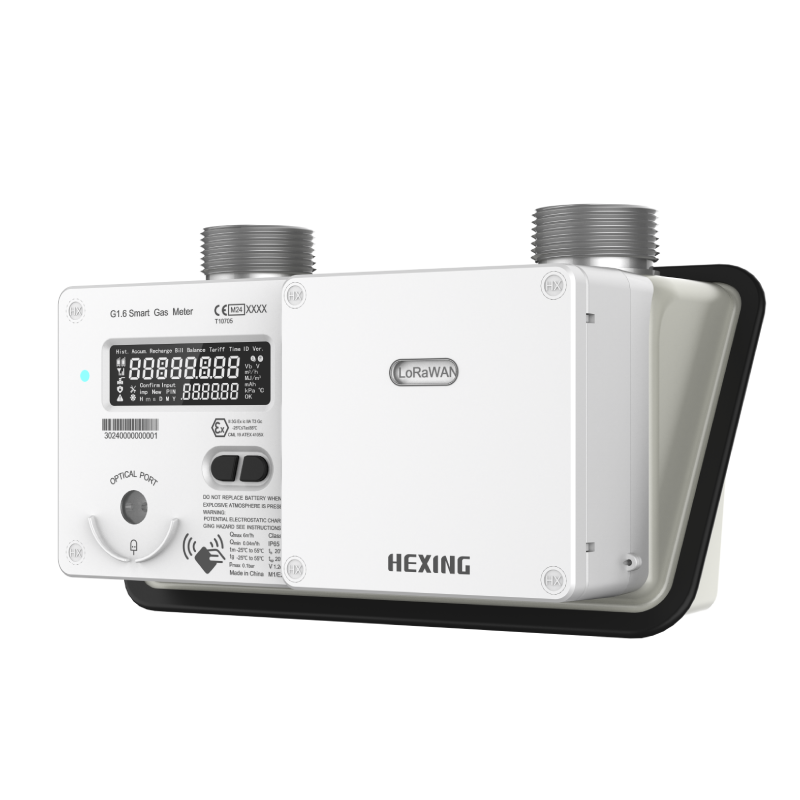

Ultrasonic Residential Meter G1.6~G6
The HXG 210 series ultrasonic residential gas meter utilizes advanced ultrasonic metering technology, integrating a high-resolution ultrasonic sensor, a high-performance ball valve, and a deeply modular smart controller to achieve high-precision and high-reliability gas metering.
Product Description
This product series is built on an exceptional modular concept, featuring field-replaceable communication modules that support true plug-and-play functionality. Gas operators can independently select and replace communication modules based on actual network conditions without complex firmware upgrades or system debugging, significantly improving deployment efficiency and maintenance convenience.
Additionally, the HXG 210 offers a wide range of expandable functions, including an NFC interface and a high-sensitivity vibration detection module, enabling gas companies to achieve convenient user interaction and intelligent device status monitoring to meet diverse operational needs.
Product Advantages
Ultrasonic Residential Meter G1.6~G6
HXG210
| Model | HXG 210 | |||
| Type | G1.6 | G2.5 | G4 | G6 |
| Qn | 1.6m³/h | 2.5m³/h | 4 m³/h | 6 m³/h |
| Qmax | 2.5m³/h | 4m³/h | 6 m³/h | 10 m³/h |
| Qmin | 0.016m³/h | 0.025m³/h | 0.04 m³/h | 0.06 m³/h |
| MOP | 0.5bar | |||
| Maximum permissible errors | Qt ≤ Q ≤ Qmax ± 1.5% | |||
| Qmin ≤ Q < Qt ± 3% | ||||
| Max pressure loss | ≤ 2mbar | |||
| Display range max. | 99999.999 m³ | |||
| Accuracy class | 1.5 | |||
| Center distance | G1.6 G2.5 G4 compatible with three flow rates | 160mm or customized | ||
| Screw size | G1¼"; G3/4"; M30x2, or customized | |||
| Working temperature | -25 °C to +55 °C | |||
| Power source | Lithium battery (replaceable), 10 years | |||
| Protection level | IP65 |
