Smart Diaphragm Household Meter G1.6~G6
Modular communication with plug-and-play, remote meter reading without entering homes, 10-year long-life battery, helping gas companies reduce costs and increase efficiency.
Product Description
Haixing keeps pace with the world’s leading smart gas meter design trends and has launched the HXG 110 smart gas meter. This gas meter adopts a diaphragm structure with built-in valves and intelligent communication devices. Gas companies can read gas meter data without sending meter readers into households. Gas companies can manage resident and gas meter information through IoT application systems, significantly saving labor costs for manual meter reading.
Haixing fully considers the diversity of communication network development in different countries and the imbalance of development levels across regions. Our solution emphasizes flexibility, meaning modules are replaceable, hot-swappable, and plug-and-play. Based on this concept, we have developed different communication modules that can quickly adapt to communication network environments in various fields.

Product Advantages






Smart Diaphragm Household Meter G1.6~G6

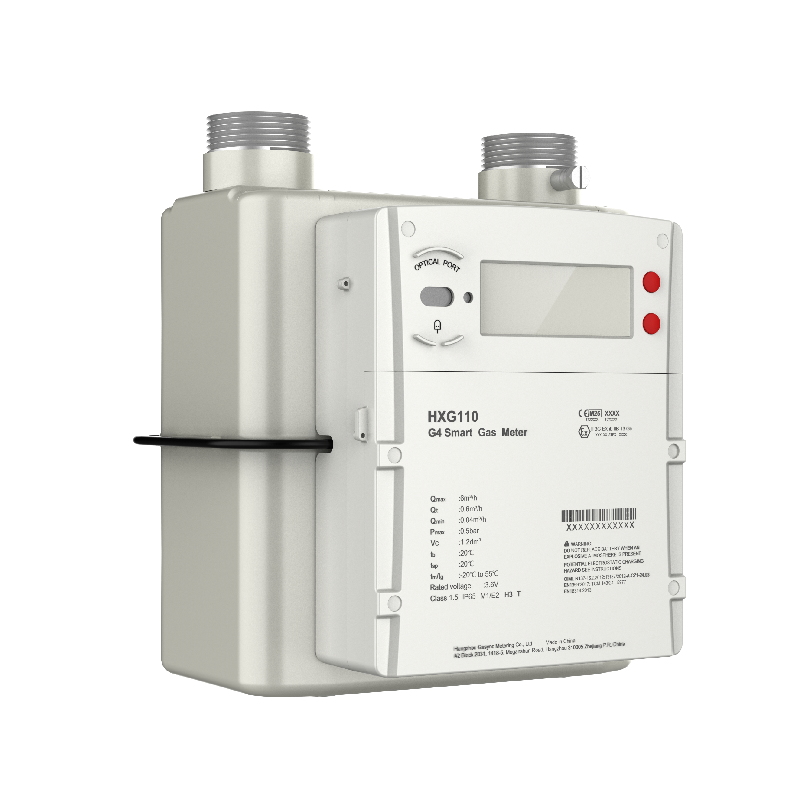

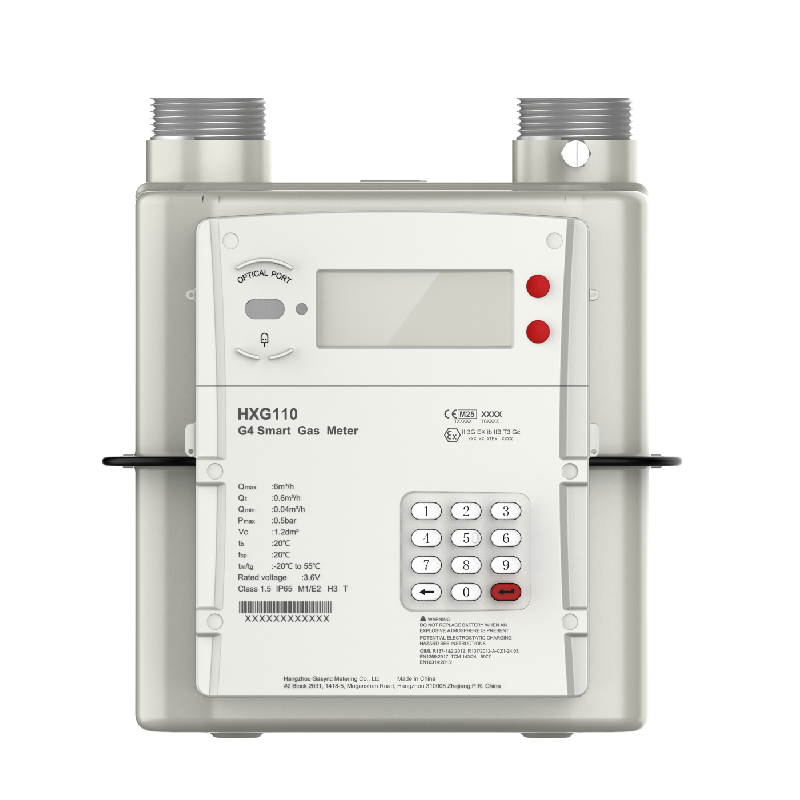

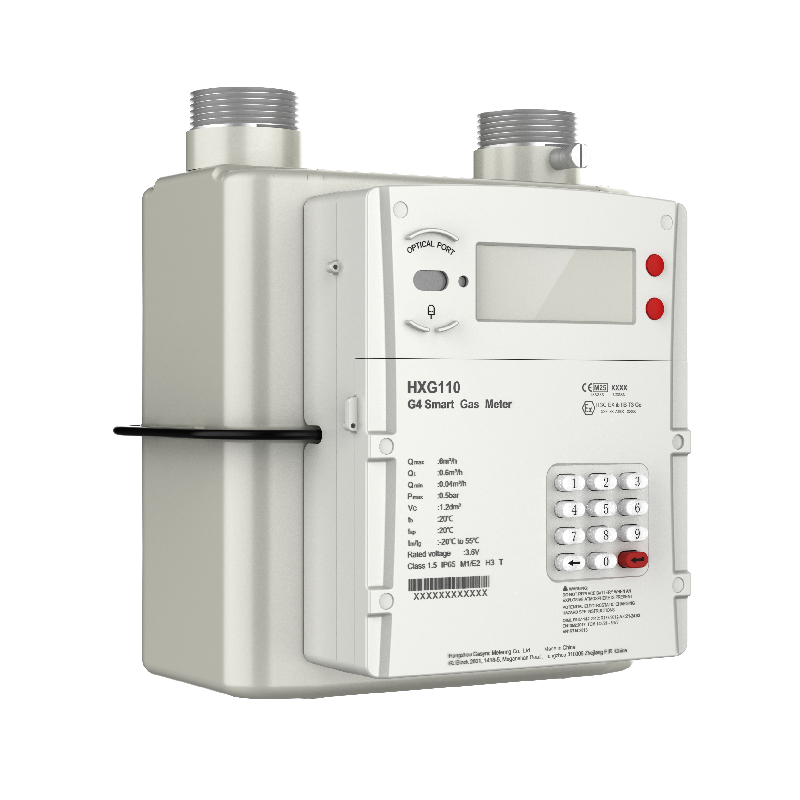

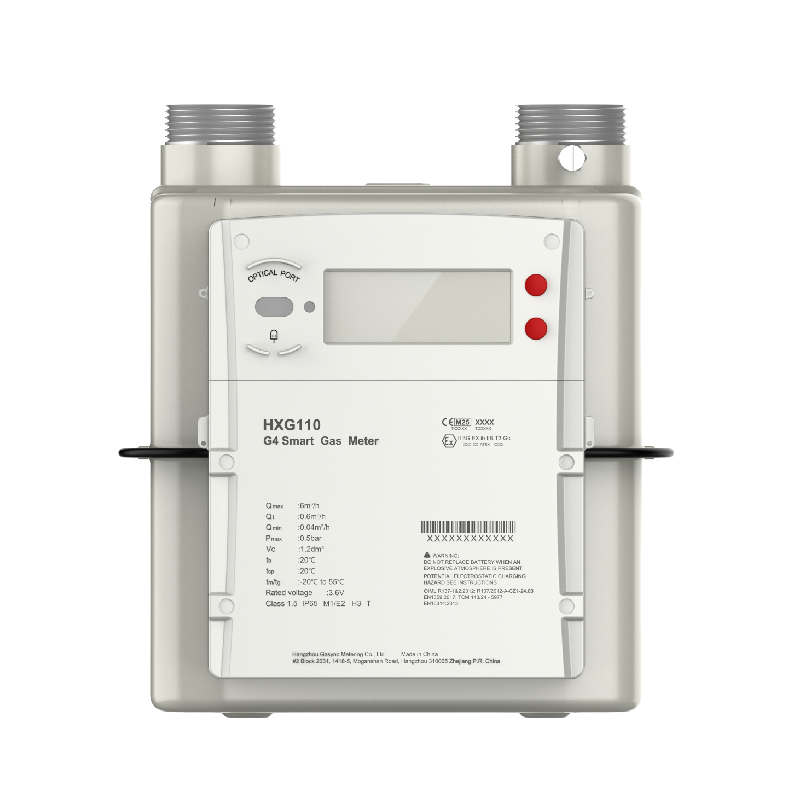

HXG110
| Type | G1.6 | G2.5 | G4 | G6 |
| Qn | 1.6m³/h | 2.5m³/h | 4 m³/h | 6 m³/h |
| Qmax | 2.5m³/h | 4m³/h | 6 m³/h | 10 m³/h |
| Qmin | 0.016m³/h | 0.025m³/h | 0.04 m³/h | 0.06 m³/h |
| MOP | 0.5bar | |||
| Maximum permissible errors | Qt ≤ Q ≤ Qmax ± 1.5% | |||
| Qmin ≤ Q < Qt ± 3% | ||||
| Max pressure loss | ≤ 2mbar | |||
| Display range max. | 999999.99 m³ | |||
| Accuracy class | 1.5 | |||
| Cyclic volume | 1.2dm³ | |||
| Center distance | 110mm/130mm or customized | |||
| Screw size | NPT 1 1/4 or customized | |||
| Working temperature | -25 °C to +55 °C | |||
| Power source | Lithium battery(replaceable), 10 years (report one time daily) | |||
| Protection level | IP65 | |||
| Communication | NB-IoT, Wi-SUN, GPRS |
