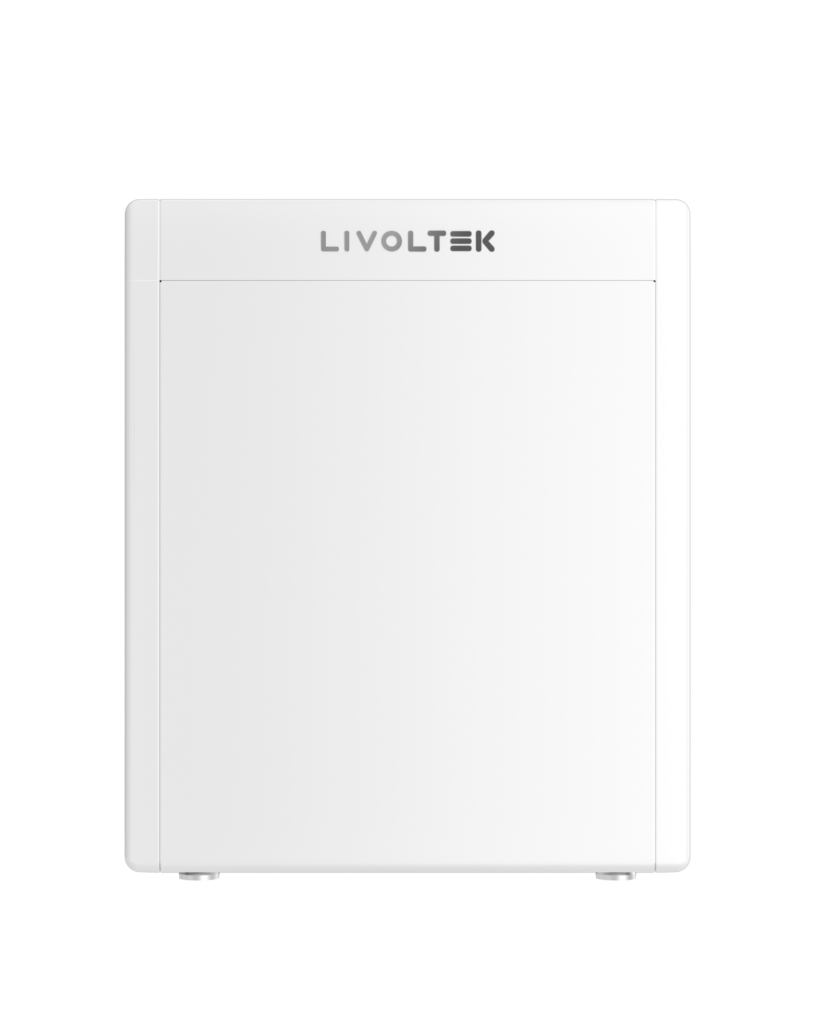

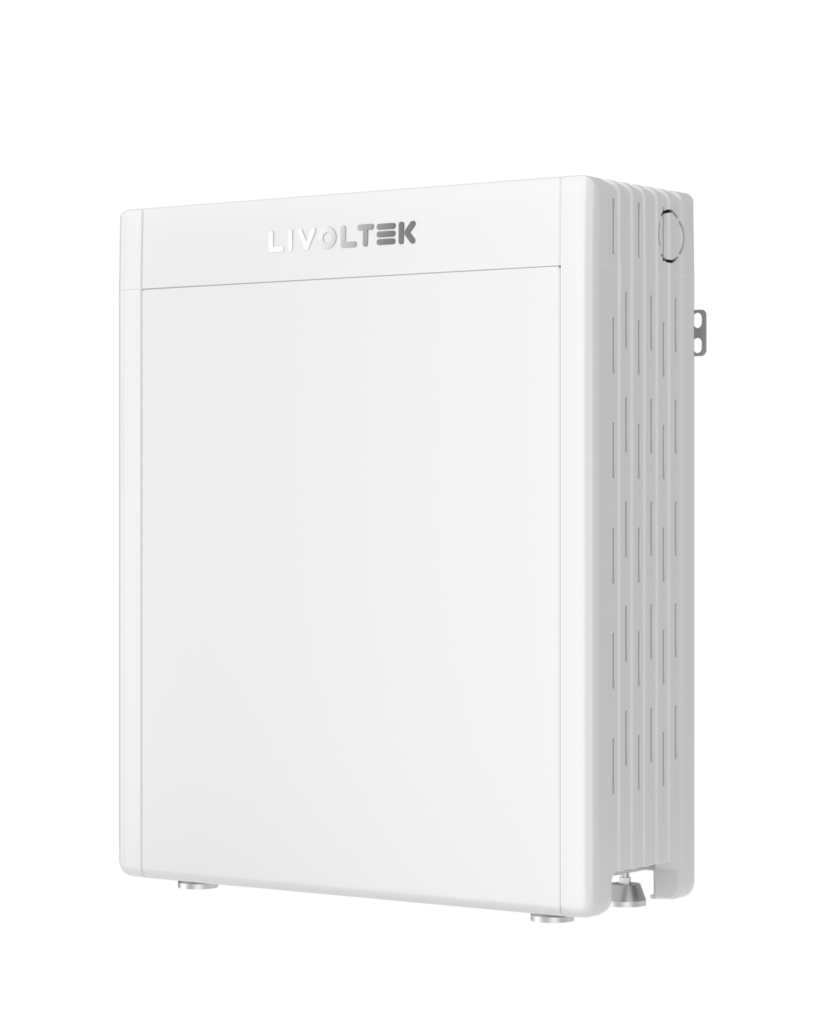

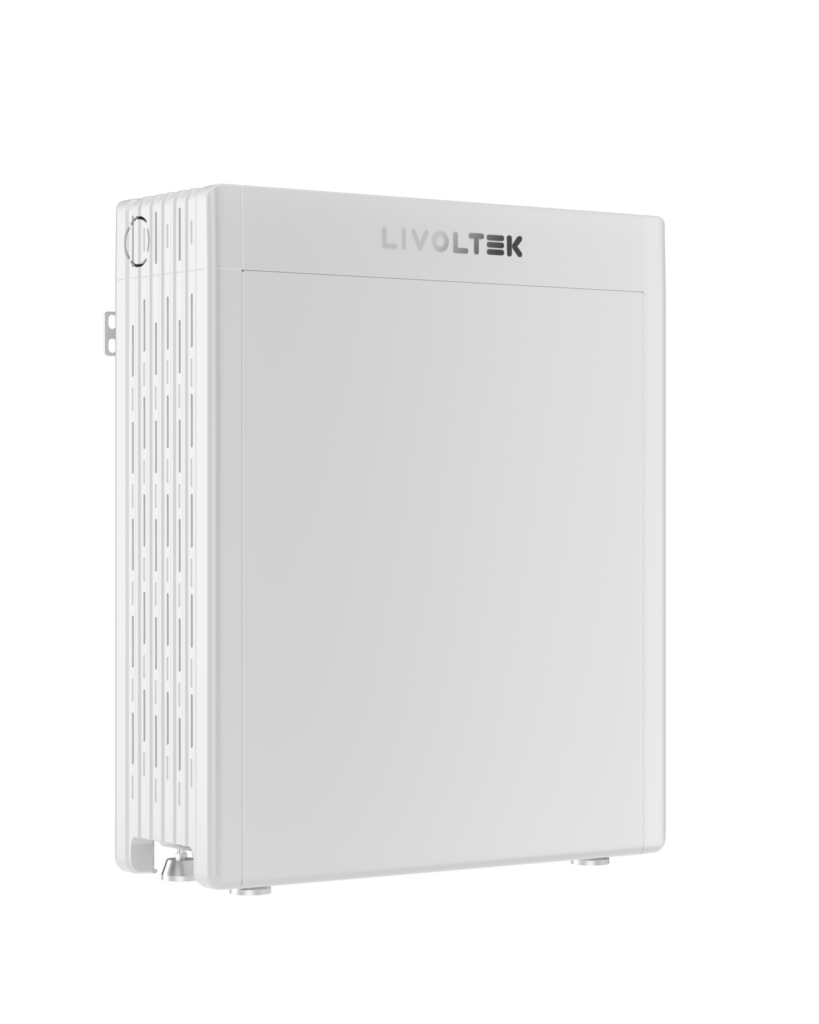

AES 系列低压储能电池

AES-5KWH-G1

AES 系列电池是 Livoltek 专为家庭储能设计的一款低压锂电池。该电池支持落地或壁挂式安装,可灵活适配您的安装环境。为了应对不断增长的负载需求,其灵活扩展的特性可以完美满足您当前及未来的能源需要。

Datasheet

  • 智能 BMS 具备多重保护功能。

  • IP65 防护等级,支持室内及户外安装。

  • 性能可靠:高效率与 90% 放电深度(DOD)。

  • 双重且坚固的机械防护。

  • 超长循环寿命,采用极高安全性的方形磷酸铁锂(LFP)电池。

  • 采用模块化设计,安装与扩展轻松快捷。

AES 系列低压储能电池

AES-5kWh-G1
电池类型磷酸铁锂(LFP)
标称电压51.2 V
工作电压范围43.2-57.6 V
标称容量100 Ah
标称能量5.12 kWh
放电深度90%
最大充电/放电电流50A/100A
BMS通讯方式RS485 / CAN
最大扩展数量最多6个模块 / 30kWh
防护等级IP65
循环寿命6000次
