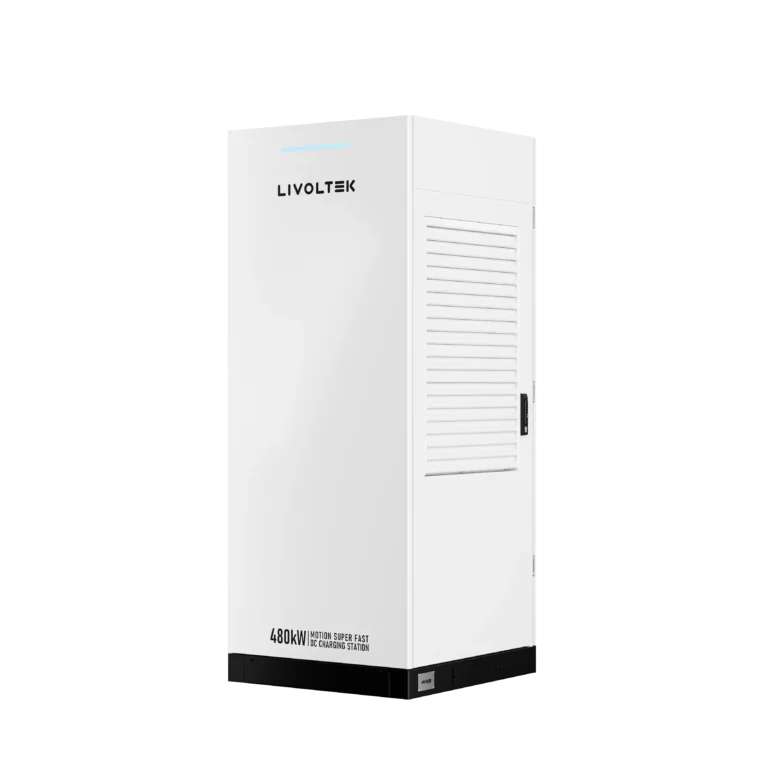

Motion DC Super Fast Charging Station (Dispenser) Power Cabinet

Power Cabinet

The Livoltek Motion SuperFast DC charging station delivers a maximum output of 480 kW for quick and flexible charging. It supports parallel operation and can handle up to 1.44 MW in total. Each cabinet has the capacity to connect up to 4 dispensers (8 connectors in total).
The station complies with all IEC standards for off-board electric vehicle charging systems, including IEC 61851-21-2 EMC requirements.

Datasheet

  • Future-proof design via open standards; OCPP 1.6U supports remote update to OCPP 2.0.1 protocol.

  • CE, UKCA and RoHS certified, compliant with IEC 61851 standards.

  • Load management and real-time demand response ready with Livoltek EV Charging Control Hub.

  • Compact footprint, high space utilization: 850×850×2050 mm.

  • Low environmental noise: 65 dBA in Silent Mode.

  • Each cabinet can connect up to 4 dispensers (8 connectors).

  • Supports parallel operation, with a maximum total capacity of 1.44 MW.

Motion DC Super Fast Charging Station (Dispenser) Power Cabinet

Power Cabinet MS 480 kW
Rated Power480 kW
AC Connection Type3P+N+PE
AC Input Voltage400 Vac ±15%
Maximum AC Input Current722 A
Rated Frequency50 / 60 Hz
Network Connection4G / Ethernet / Wi-Fi
External Communication InterfacesRS485 / RS232 / CAN
