10/20/35/110kV Oil-Immersed Transformer

10/20/35/110kV Low-Loss, High-Safety Oil-Immersed Core Power Distribution Transformer.

Low loss

Low noise

Strong Short-Circuit Resistance

Attractive Appearance

Product Description

The core of the 110kV oil-immersed power transformer is made of high-quality grain-oriented silicon steel sheets stacked in multi-step steps, with a cured coating on the surface. It features low loss and low noise. The coil adopts an inner and outer support strip structure, and high-strength hard paper tube structure is used between the coil and the core, as well as between coils, effectively ensuring resistance to sudden short-circuit impact. The body and tank are positioned with an all-around positioning structure to ensure stability during transportation and operation, with an elegant and generous appearance.

Low loss

Complies with the energy efficiency requirements of the "Minimum Allowable Values of Energy Efficiency and Energy Efficiency Grades for Power Transformers" standard.

Low noise

Meets the low-noise standard requirements of State Grid / China Southern Power Grid.

Strong Short-Circuit Resistance

The coil interior is supported by a high-quality insulating framework, and the tank side wall is laser-cut in one pass.

Attractive Appearance

Full polishing and rust removal, powder electrostatic spraying achieves appliance-grade finish.

Success Stories

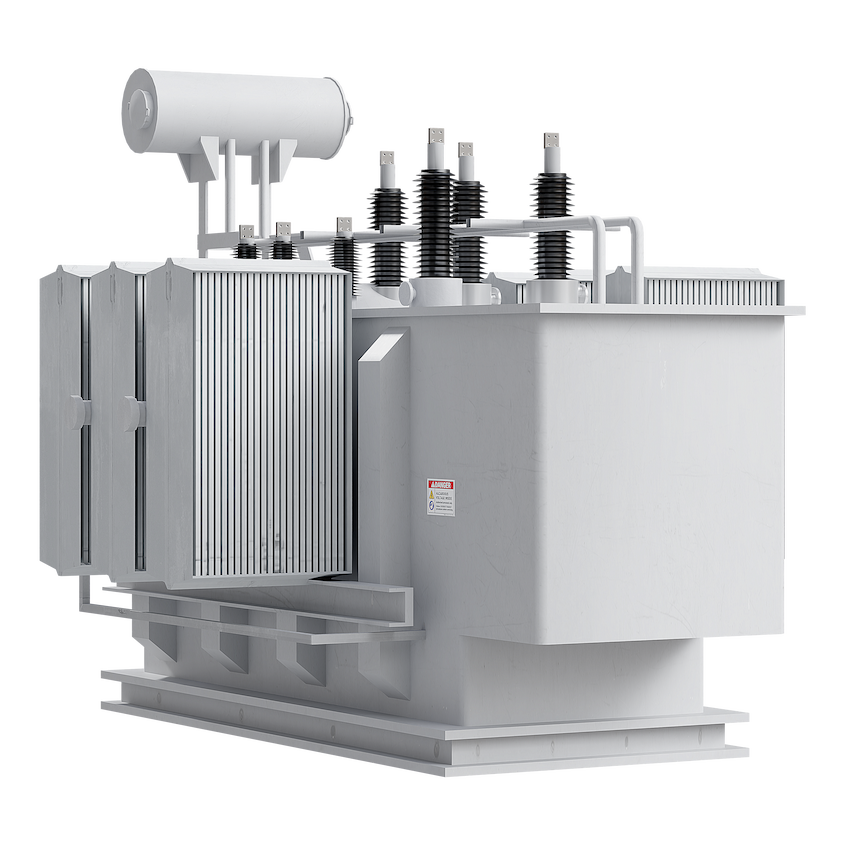

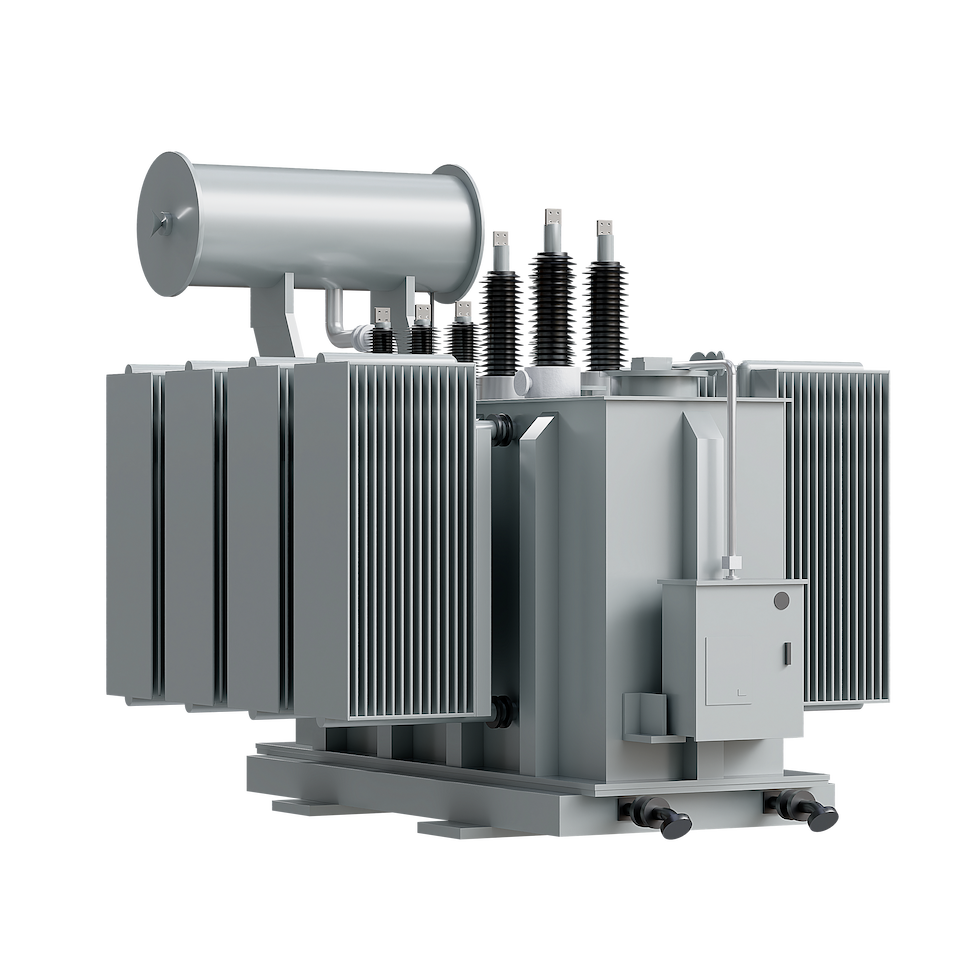

10/20/35/110kV Oil-Immersed Transformer

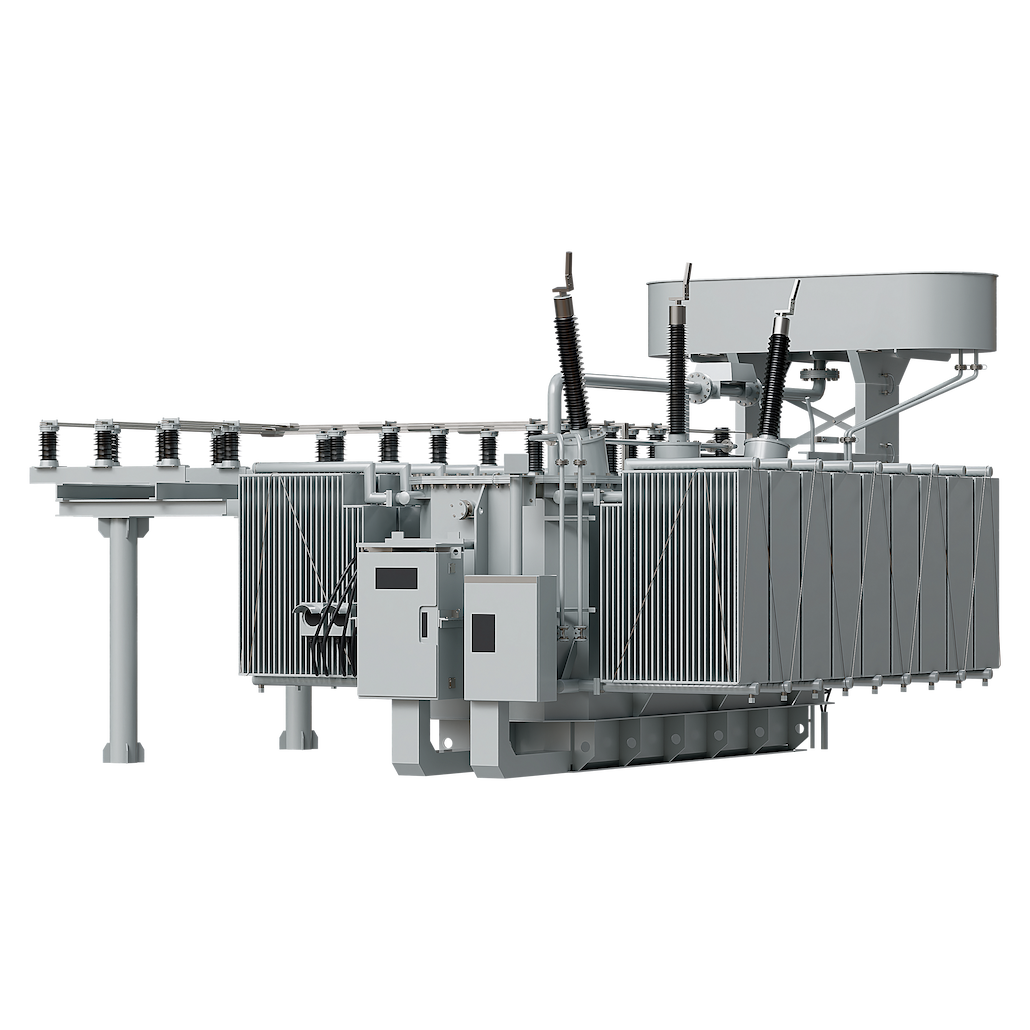

110kV Oil-Immersed Power Transformer

Rated Capacity KVA	Level 1		Level 2		Level 3		Short-Circuit Impedance %
	No-Load Loss W	Load Loss W	No-Load Loss W	Load Loss W	No-Load Loss W	Load Loss W	/
6300	4.1	32	4.8	38	5.9	33	10.5
8000	4.9	38	5.8	38	7.1	40	10.5
10000	5.8	45	6.8	45	8.4	48	10.5
12500	6.8	53	8.1	53	9.9	56	10.5
16000	8.3	65.7	9.8	65.7	12.0	69	10.5
20000	9.7	79	11.4	79	14.1	84	10.5
25000	11.4	94	13.5	94	16.6	99	10.5
31500	13.5	111	16.0	111	19.7	117	10.5
40000	16.2	133	19.1	133	23.5	141	10.5
50000	19.4	158	22.9	158	28.2	166	10.5
63000	22.9	187	27.0	187	33.3	198	10.5
80000	26.0	212	30.7	212	37.8	224	12~14
100000	29.9	245	35.4	245	43.5	258	12~14

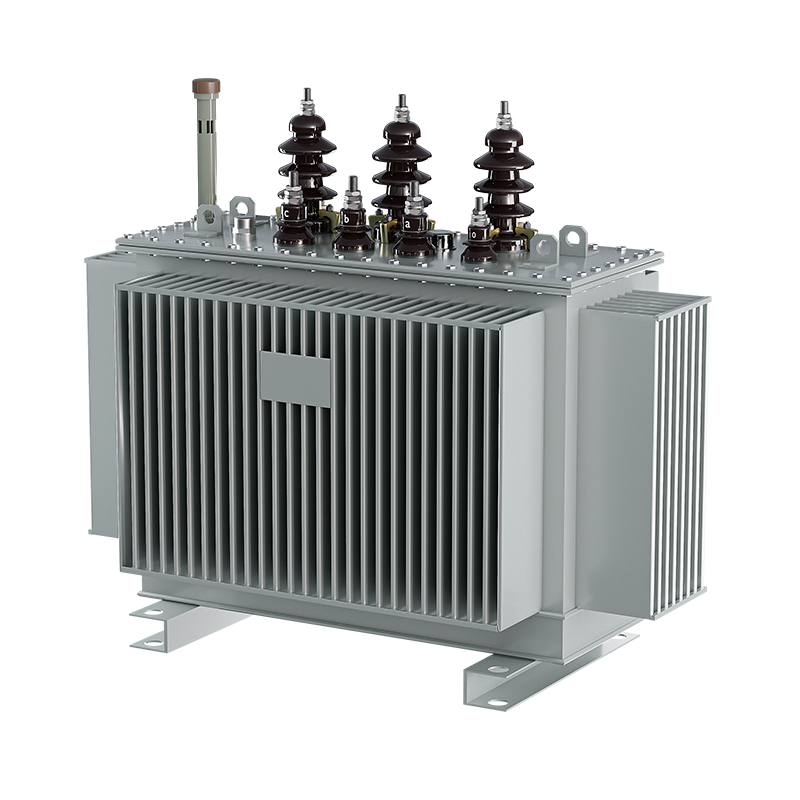

10kV Oil-Immersed Stacked Core Distribution Transformer

Rated Capacity KVA	Level 1			Level 2			Level 3			Short-circuit Impedance %
	Electrical Steel Strip			Electrical Steel Strip			Electrical Steel Strip
	No-load Loss W	Load Loss W		No-load Loss W	Load Loss W		No-load Loss W	Load Loss W
		Dyn11/Yzn11	Yyn0		Dyn11/Yzn11	Yyn0		Dyn11/Yzn11	Yyn0
30	65	455	430	70	505	480	80	630	600	4.0
50	80	655	625	90	730	695	100	910	870
63	90	785	745	100	870	830	110	1090	1040
80	105	945	900	115	1050	1000	130	1310	1250
100	120	1140	1080	135	1265	1200	150	1580	1500
125	135	1360	1295	150	1510	1440	170	1890	1800
160	160	1665	1585	180	1850	1760	200	2310	2200
200	190	1970	1870	215	2185	2080	240	2730	2600
250	230	2300	2195	260	2560	2440	290	3200	3050
315	270	2760	2630	305	3065	2920	340	3830	3650
400	330	3250	3095	370	3615	3440	410	4520	4300
500	385	3900	3710	430	4330	4120	480	5410	5150
630	460	4460		510	4960		570	6200		4.5
800	560	5400		630	6000		700	7500
1000	665	7415		845	8240		830	10300
1250	780	8640		870	9600		970	12000
1600	940	10440		1050	11600		1170	14500
2000	1085	13180		1225	14640		1360	18300		5.0
2500	1280	13360		1440	14840		1600	21200
